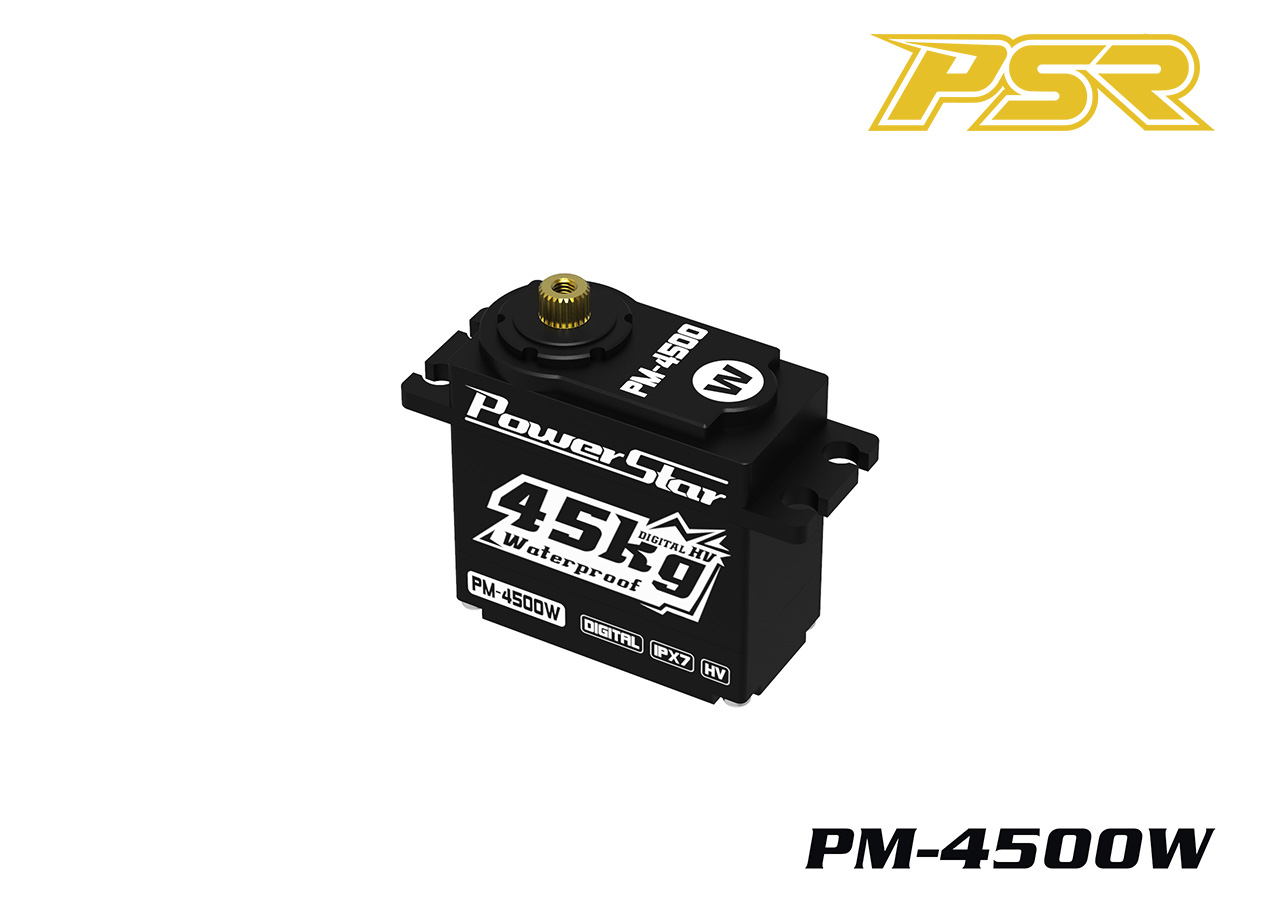

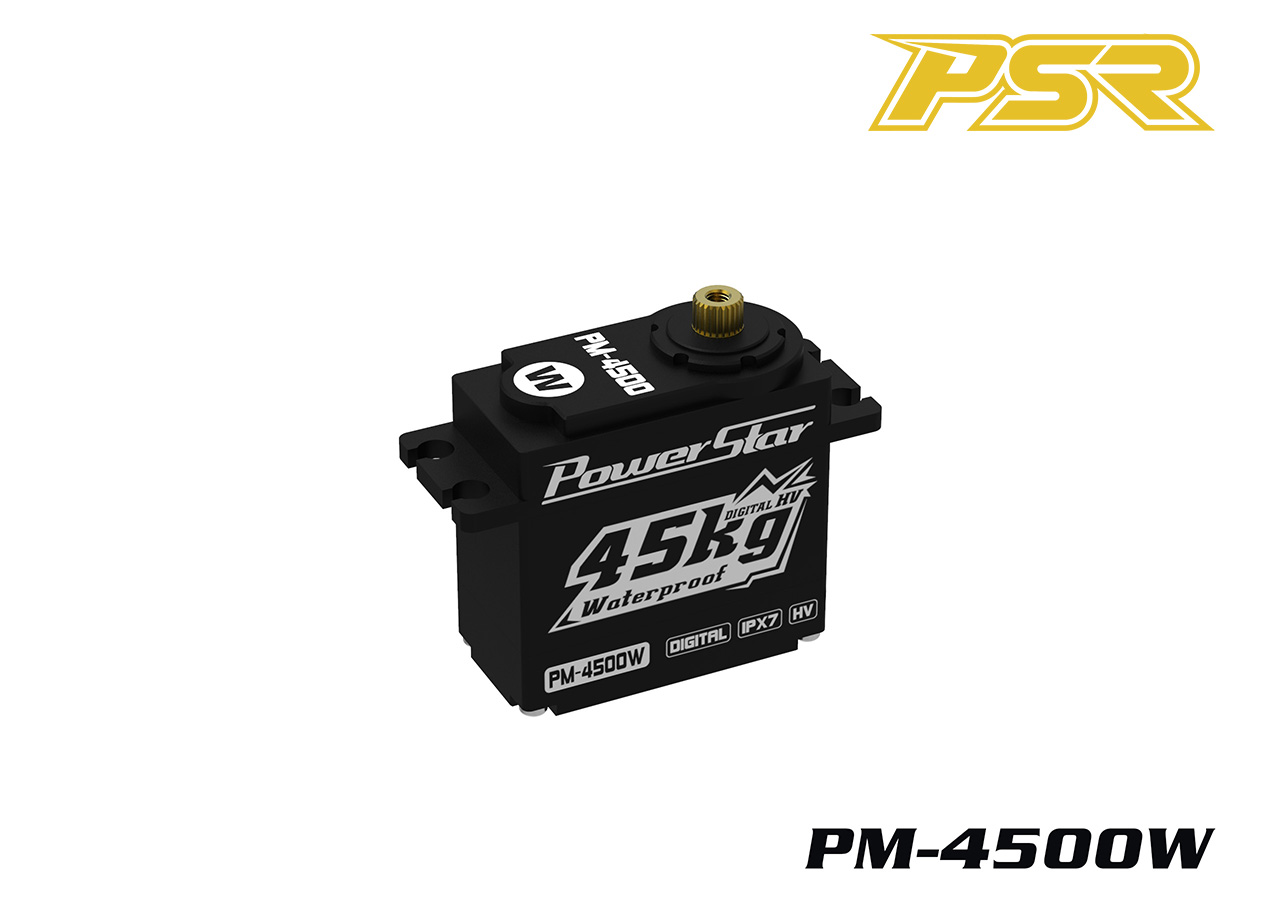

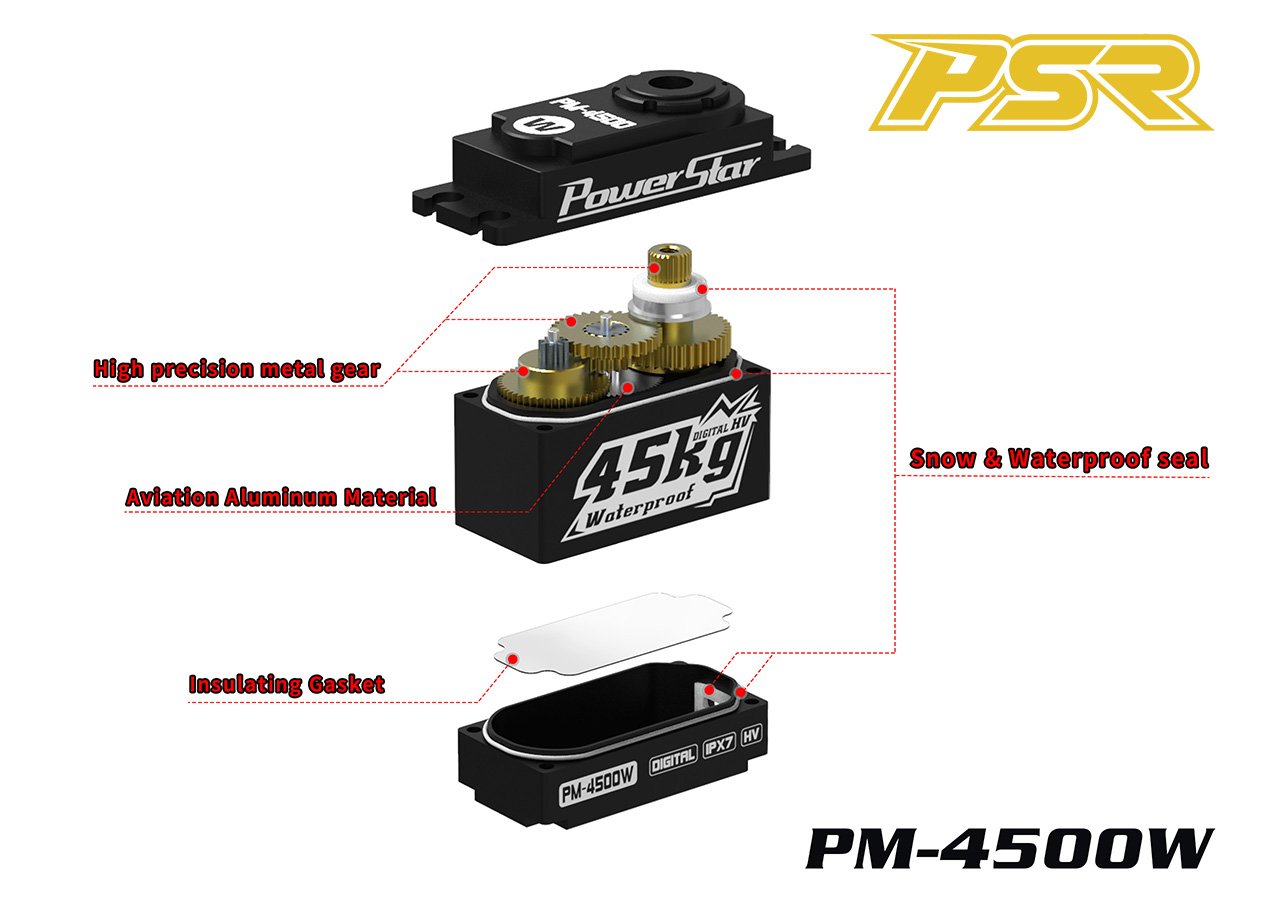

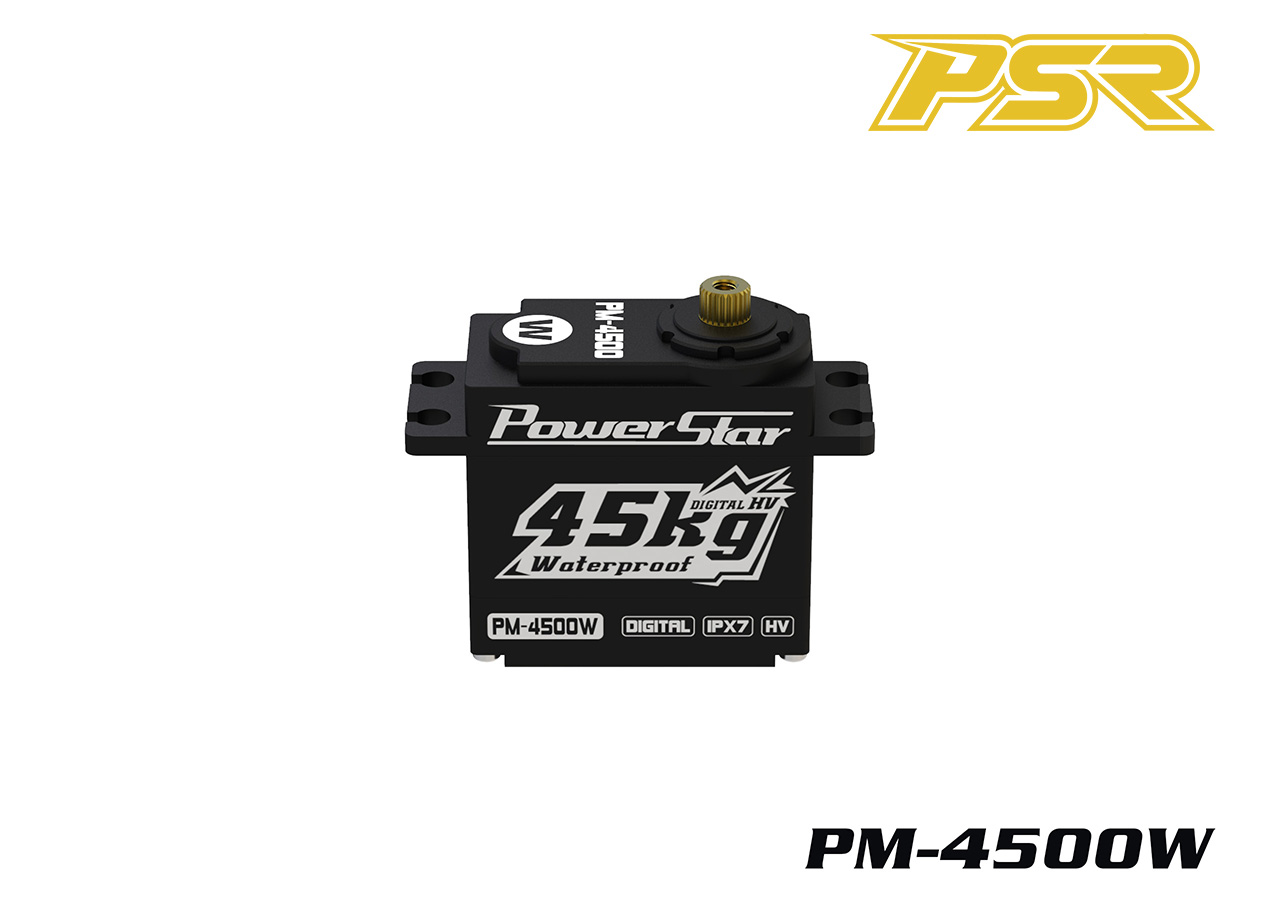

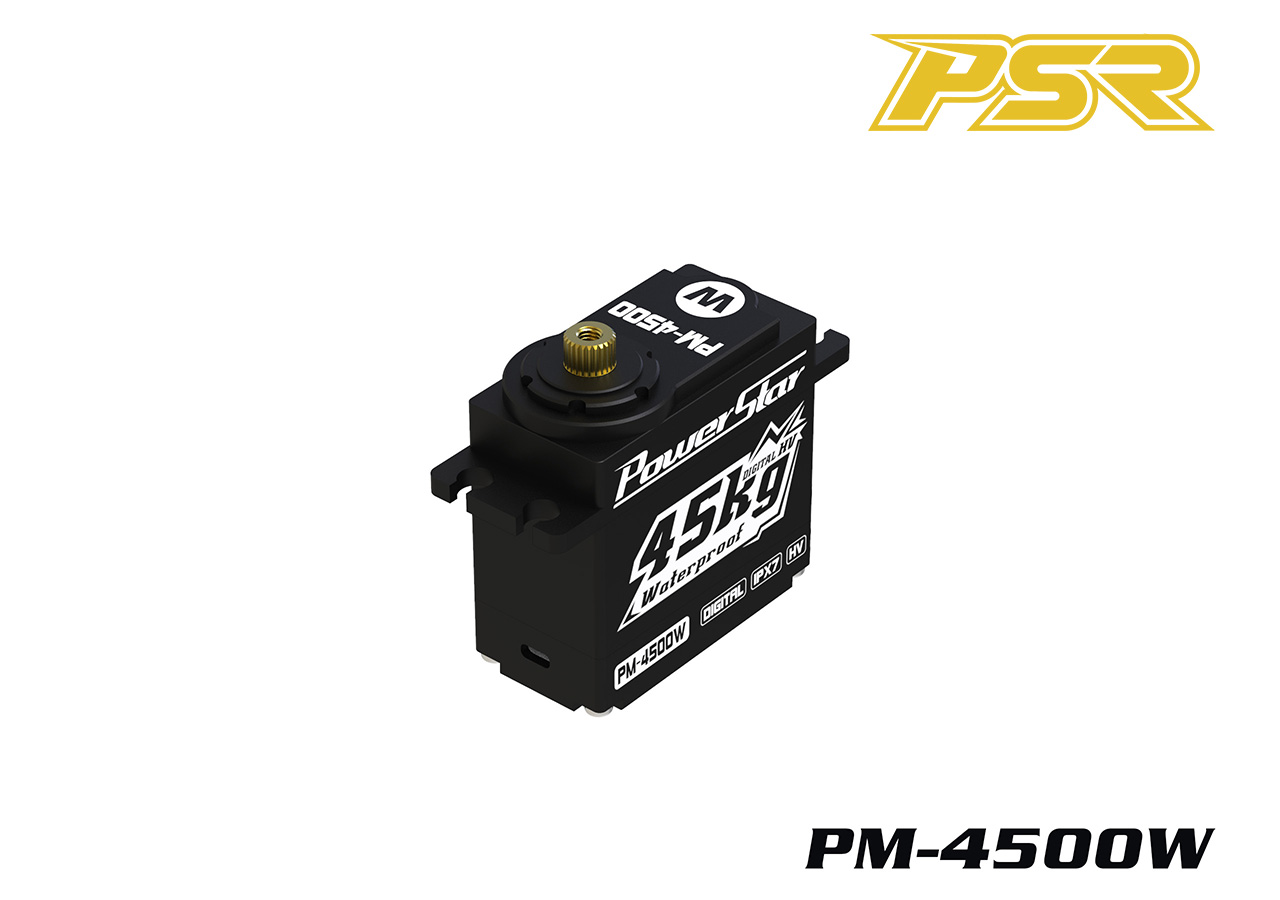

New HV DC Motor Digital Waterproof Servo with all aluminum case ※ Full CNC Aluminum case for the best thermal dissipation and durability. ※ Special process waterproof shell design with clear signal wire, IP67 waterproof, dust-proof. ※ Over current protection &over temperature protection ※ High Torque & Speed - The maximum torque of short body servo is up to 45 kg-cm @ 8.4V. Operating Speed: 0.16sec/60° ※ Application - Ideal for 1/10, 1/8 RC car ,airplane, boat, aircraft applications,Engine etc. Especially suitable for beginners of crawler.
Brand: powerstar
Availability: 98
Specifications:
Torque(6.0V): 33.0 kg-cm /458 oz-in
Torque(7.4V): 38.0 kg-cm /527 oz-in
Torque(8.4V): 45.0 kg-cm /625 oz-in
Speed:
0.2sec(6.0V)
0.18sec(7.4V)
0.16sec(8.4V)
Operating Voltage：4.8V ~ 8.4V
Weight: 77g ( not including accessory)
Bearing Type：Metal Bearing*2 pcs
Motor Type：DC Motor
Gear Type：Copper
Operating Temperature range：-20℃~+60℃
Working frequency：1500μs / 333Hz

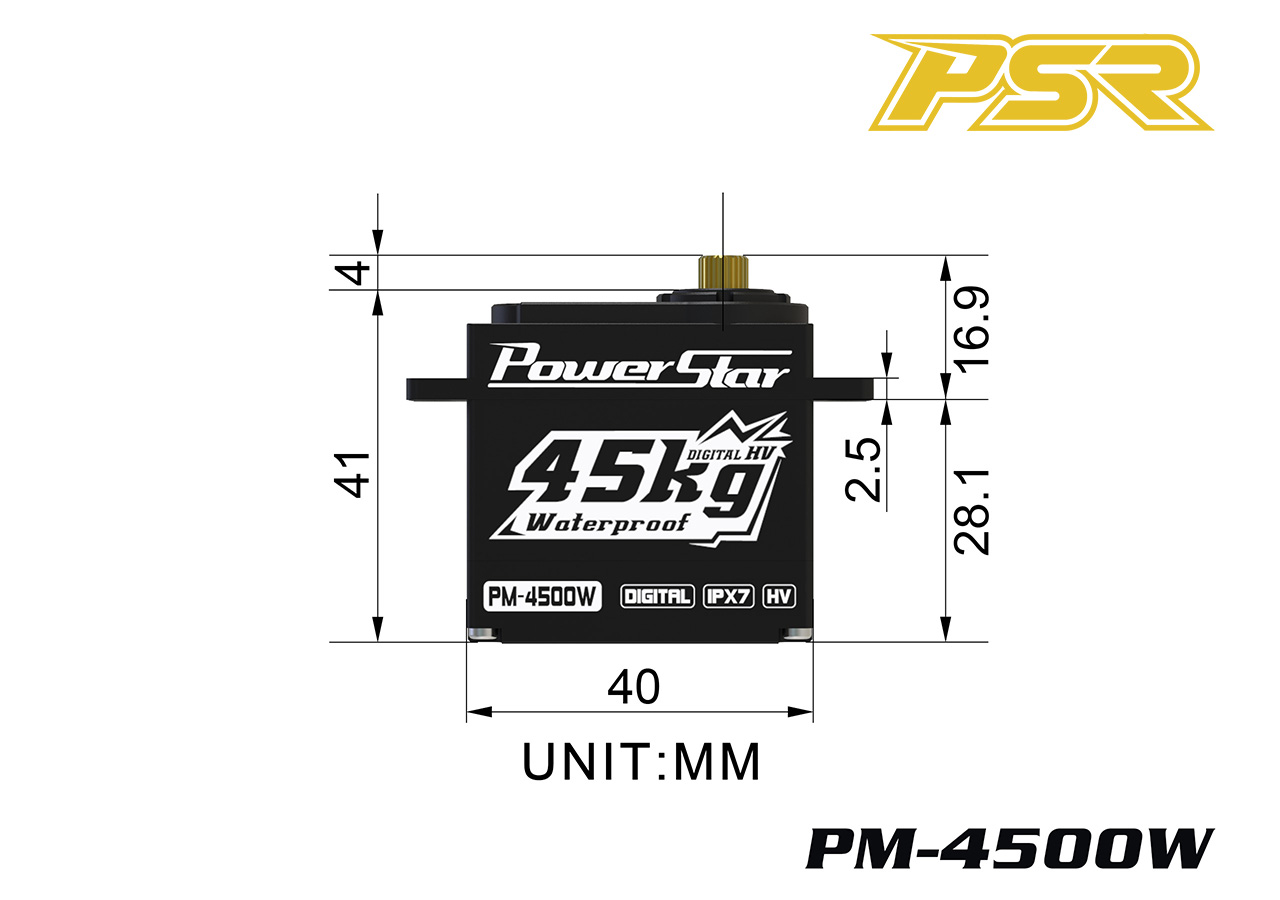

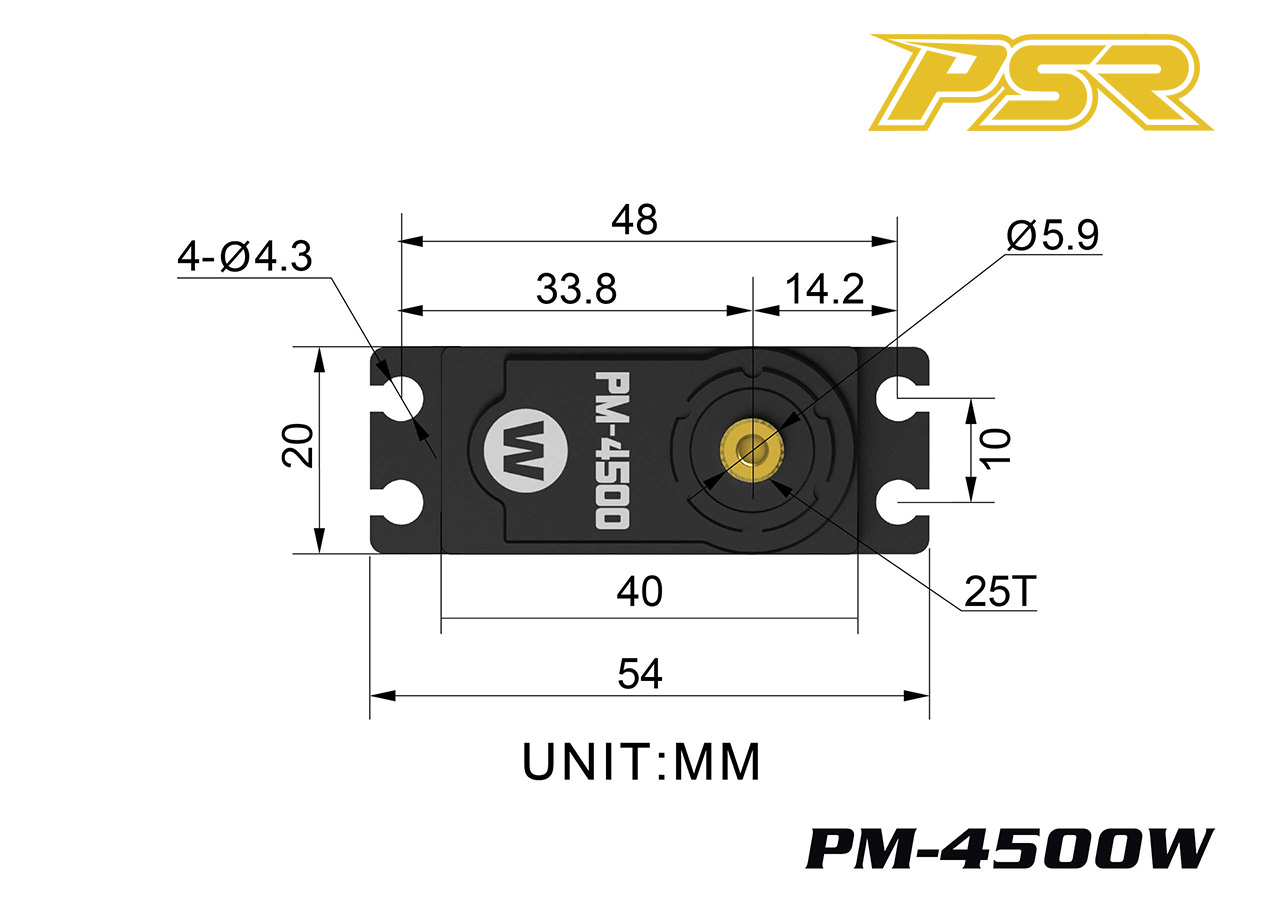

Size：40 x 20 x 39 mm
Wire Length:220mm
Wire Gauge: 22 AWG
Signal:Grey
Package: 1 set Box-packed with one tool bag
