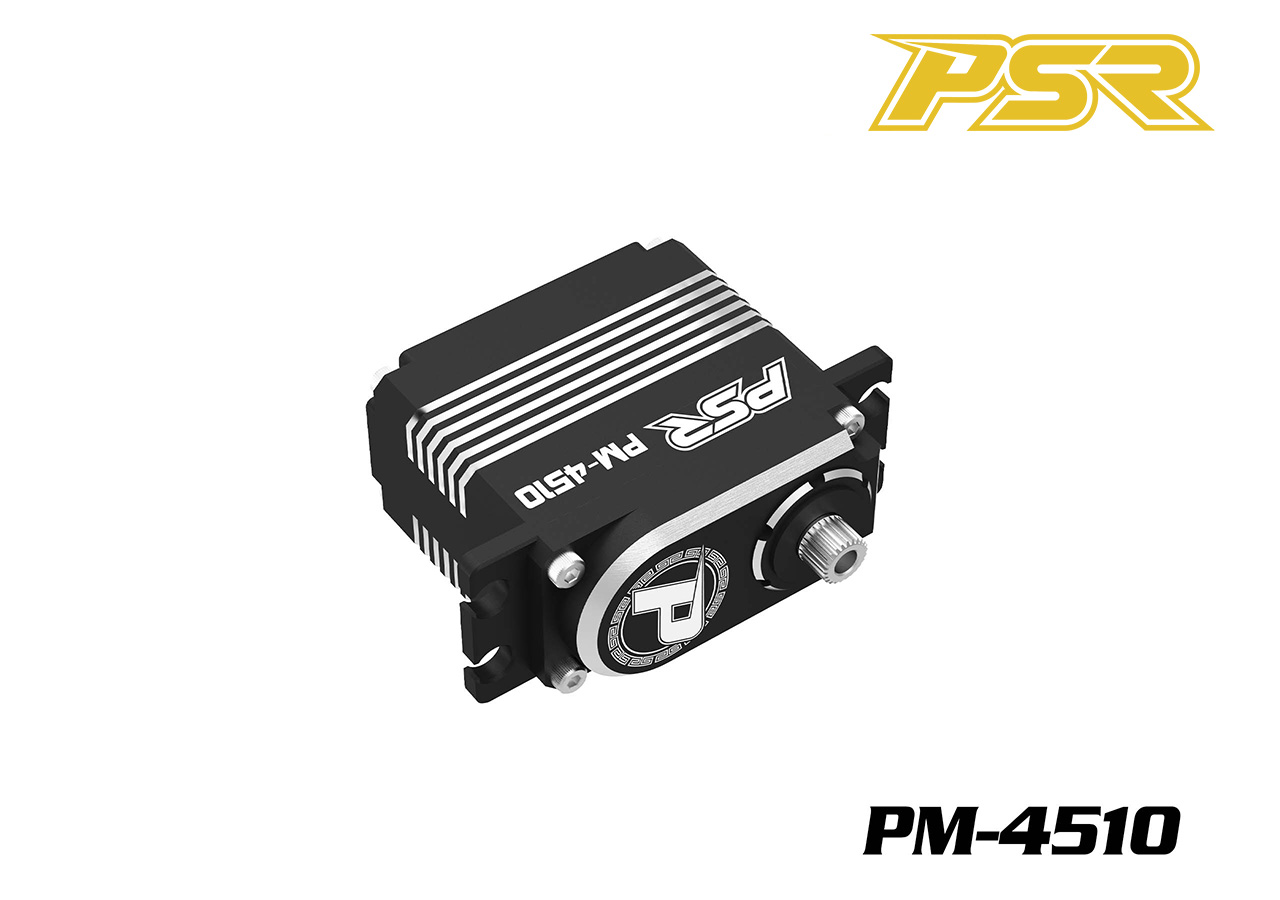

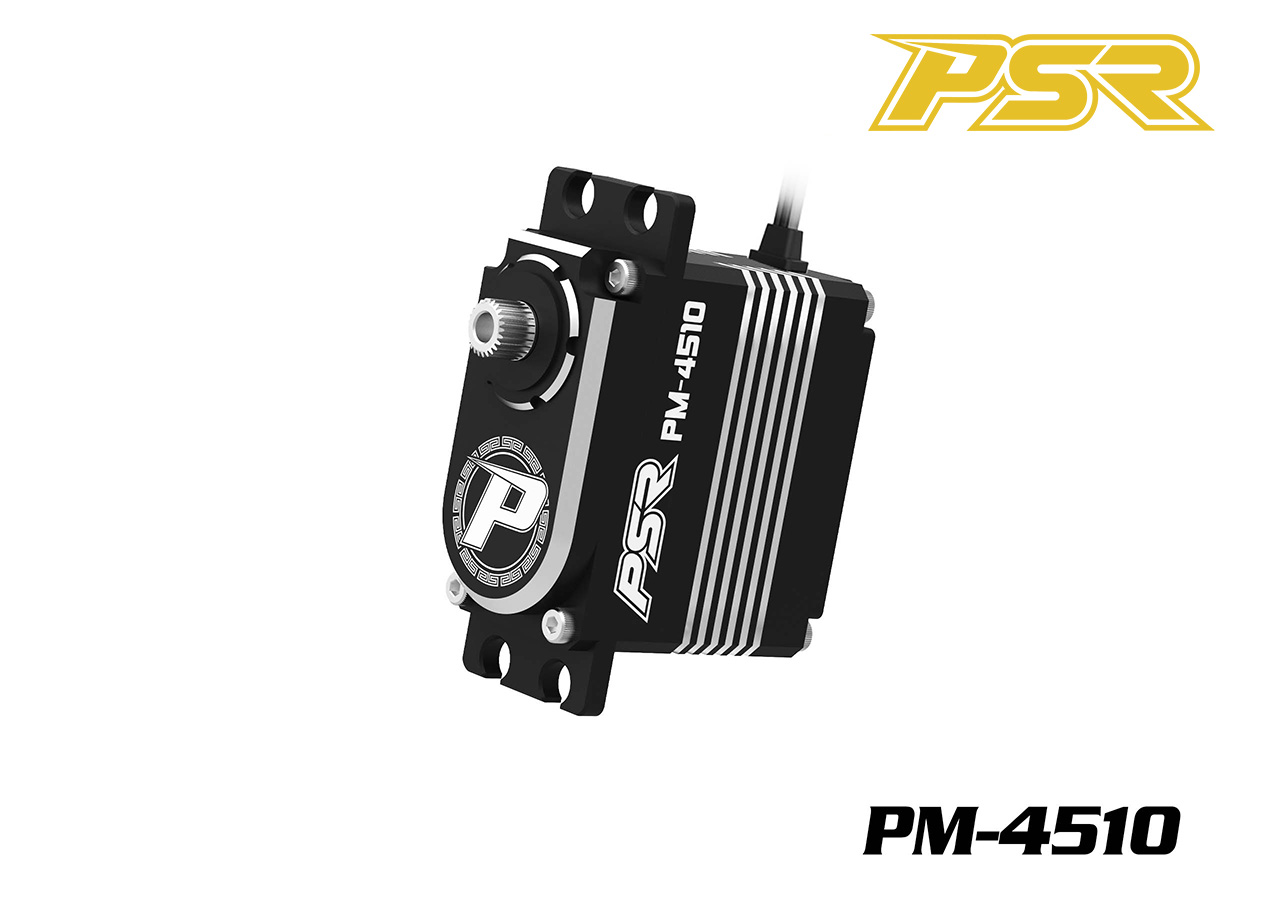

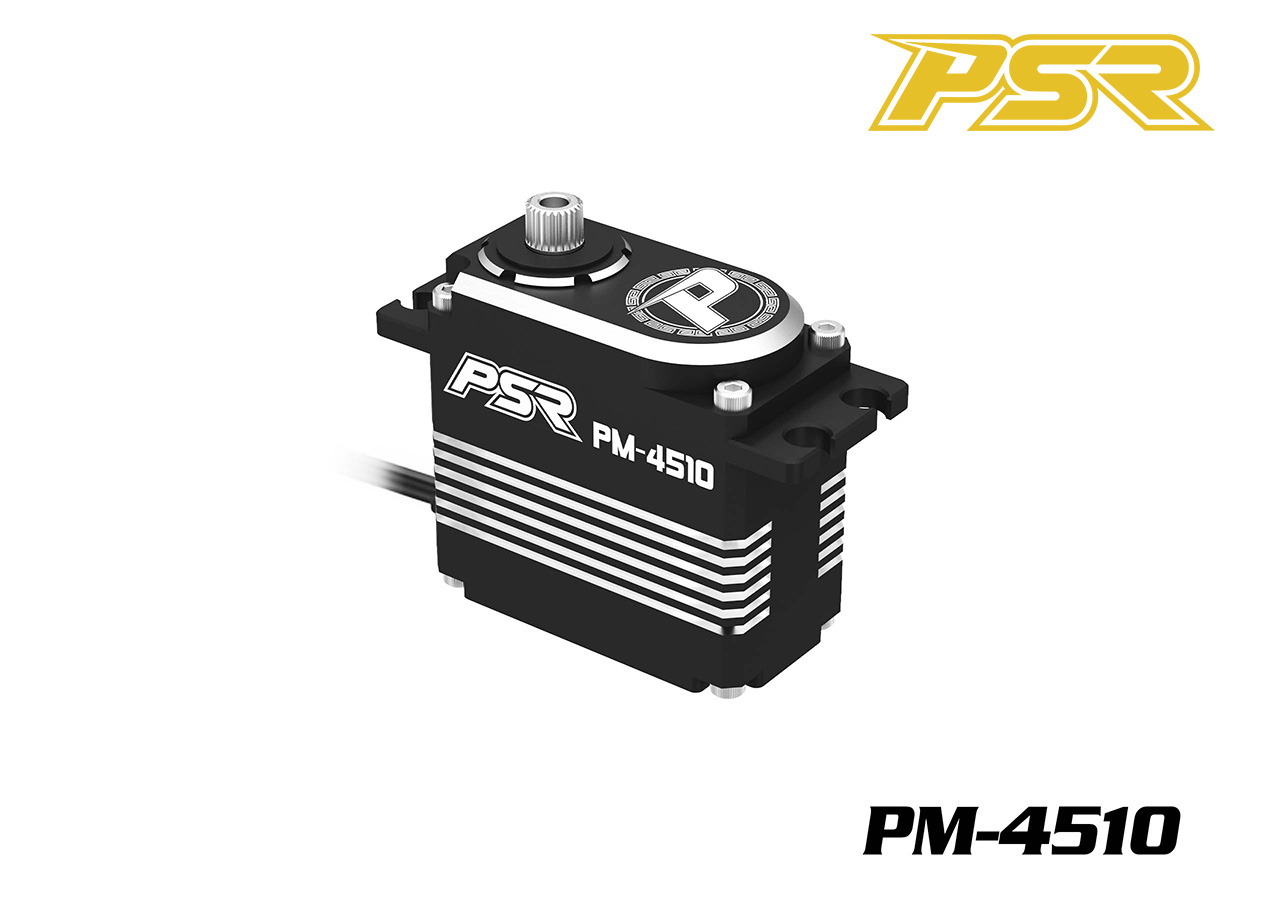

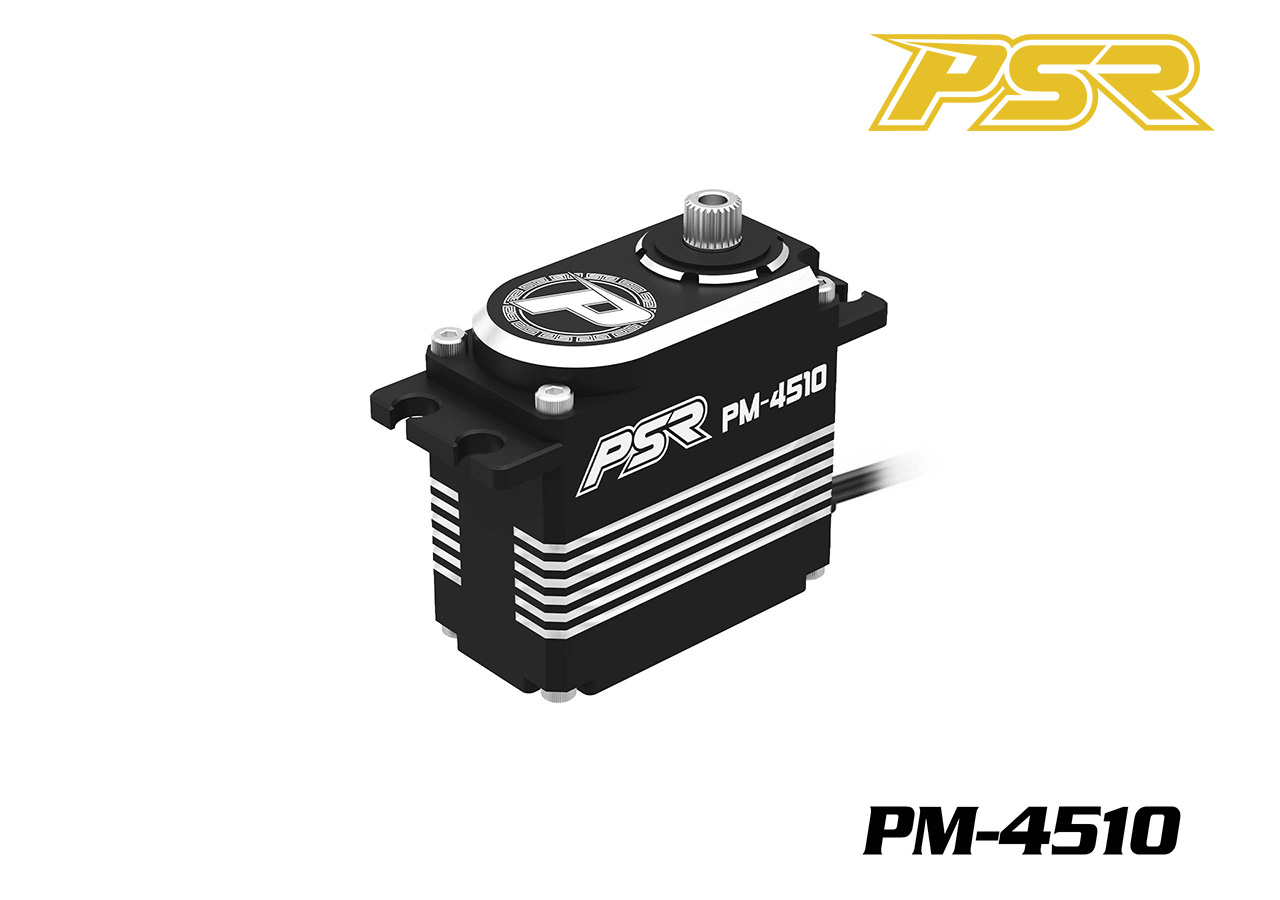

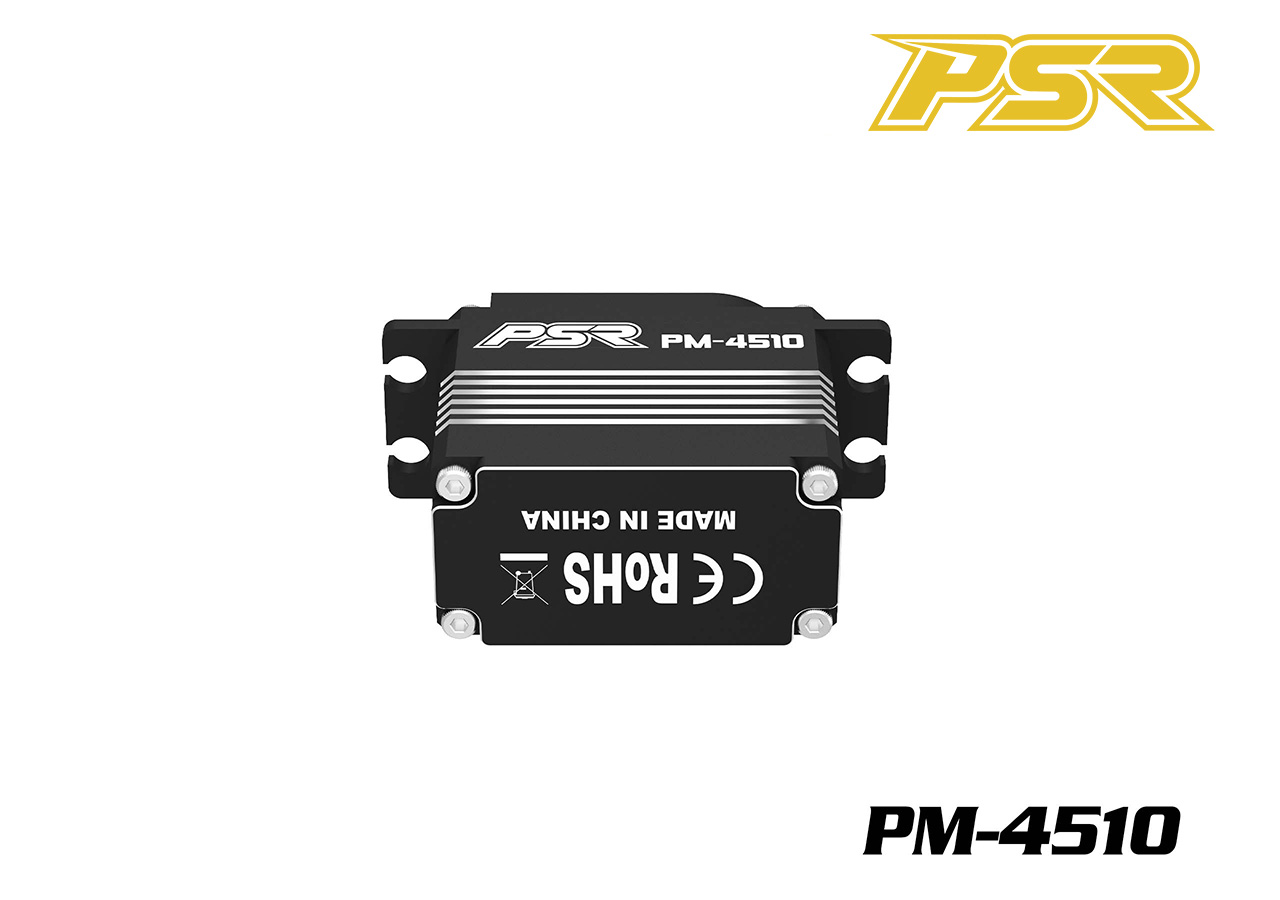

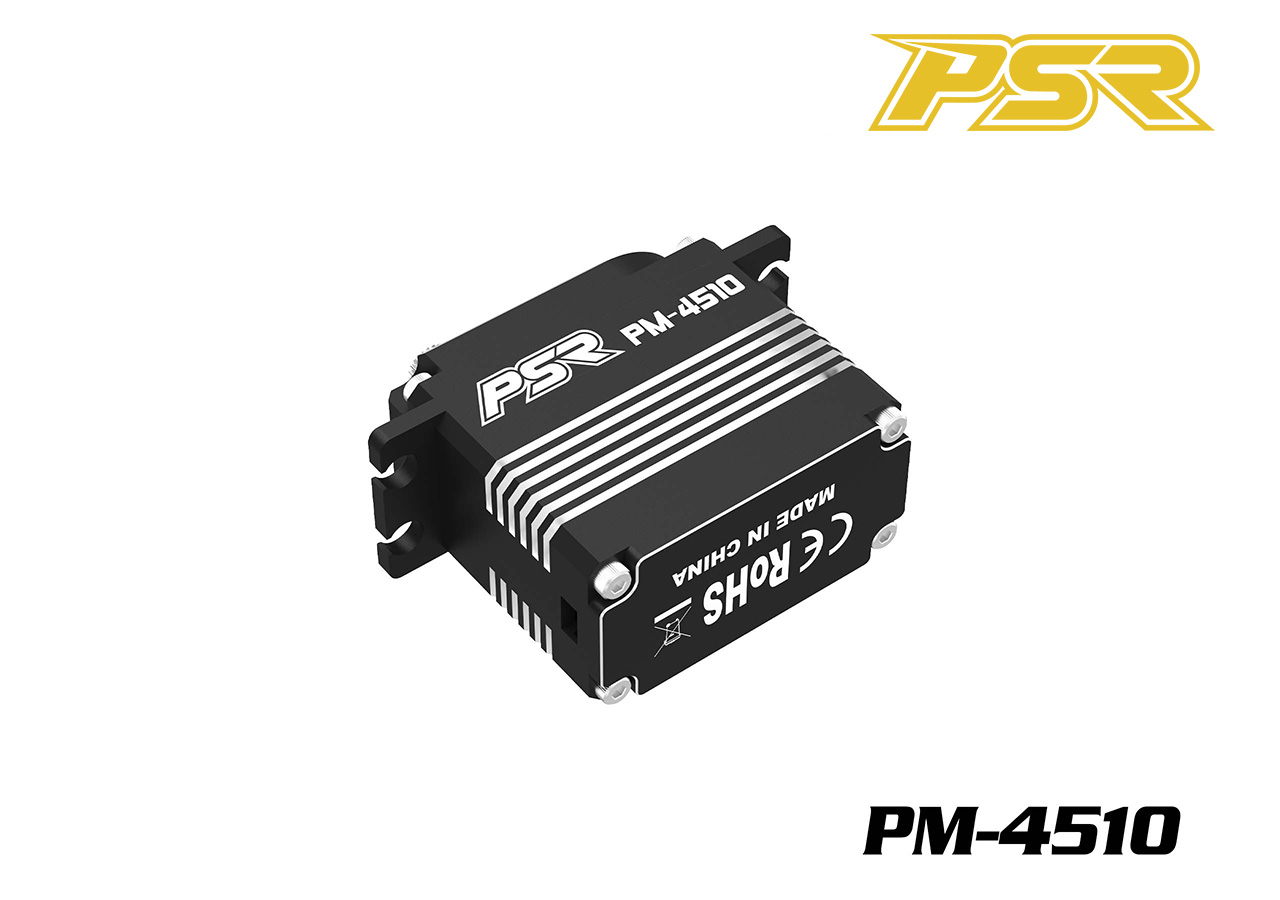

New HV Digital Servo is High-end,High-quality and All aluminum case ※ Full CNC Aluminum case for the best thermal dissipation and durability. ※ Use high-quality Brushless motor design provides extremely high speed, top efficiency, and lower power consumption, and resistance high temperature magnet. ※ Strong Metal Gear, Using the steel gear to increase the intensity, Reduce the inertia at the same intensity, Using the aluminum gear to reduce the noise. ※ High-Speed, High-precision 32-bit converter ※ Potentiometer , precision ,Stable，low noise ※ Perfect packaging to enhance the brand figure. ※ Over current protection &over temperature protection ※ High Torque & Speed - The maximum torque of short body servo is up to 45 kg-cm @ 8.4V. Operating Speed: 0.1sec/60° ※ Upgrade & Programmable - The upgrade high torque HV digital servo is programmable servo ,programmer can change torque, speed, angle, inversion, etc. ※ Application - Ideal for 1/10, 1/12 touring cars, racing cars , airplane, boat, aircraftapplications.
Brand: powerstar
Availability: 96
Specifications:
Torque(6.0V): 40.0 kg-cm /555 oz-in
Torque(7.4V): 42.0 kg-cm /583 oz-in
Torque(8.4V): 45.0 kg-cm /624 oz-in
Speed:
0.13sec(6.0V)
0.12sec(7.4V)
0.10sec(8.4V)
Operating Voltage：4.8V ~ 8.4V
Weight: 79g ( no including accessory)
Bearing Type：Metal Bearing*2 pcs
Motor Type：Brushless
Gear Type：Steel(enhanced)
Operating Temperature range：-20℃~+60℃
Working frequency：1500μs / 333Hz

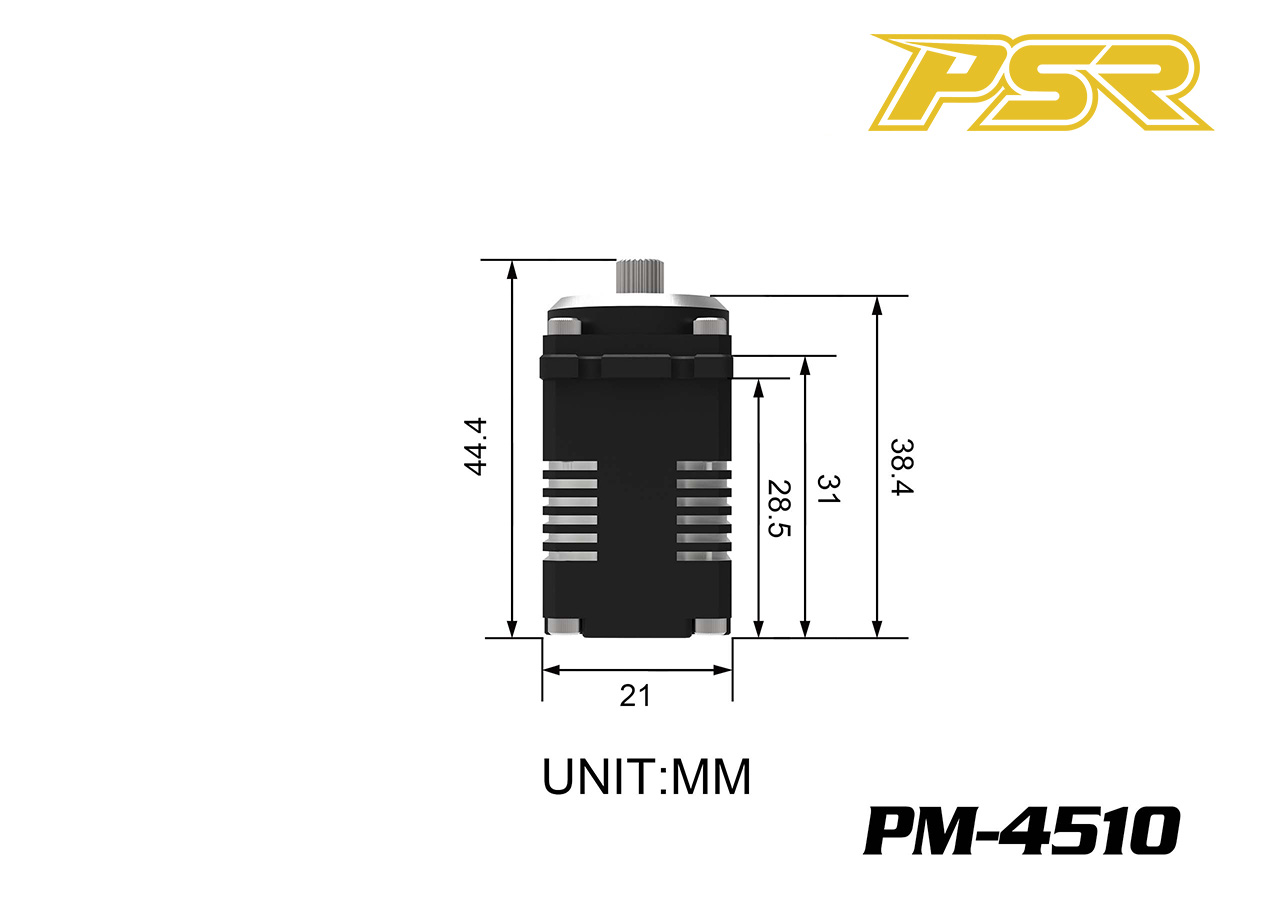

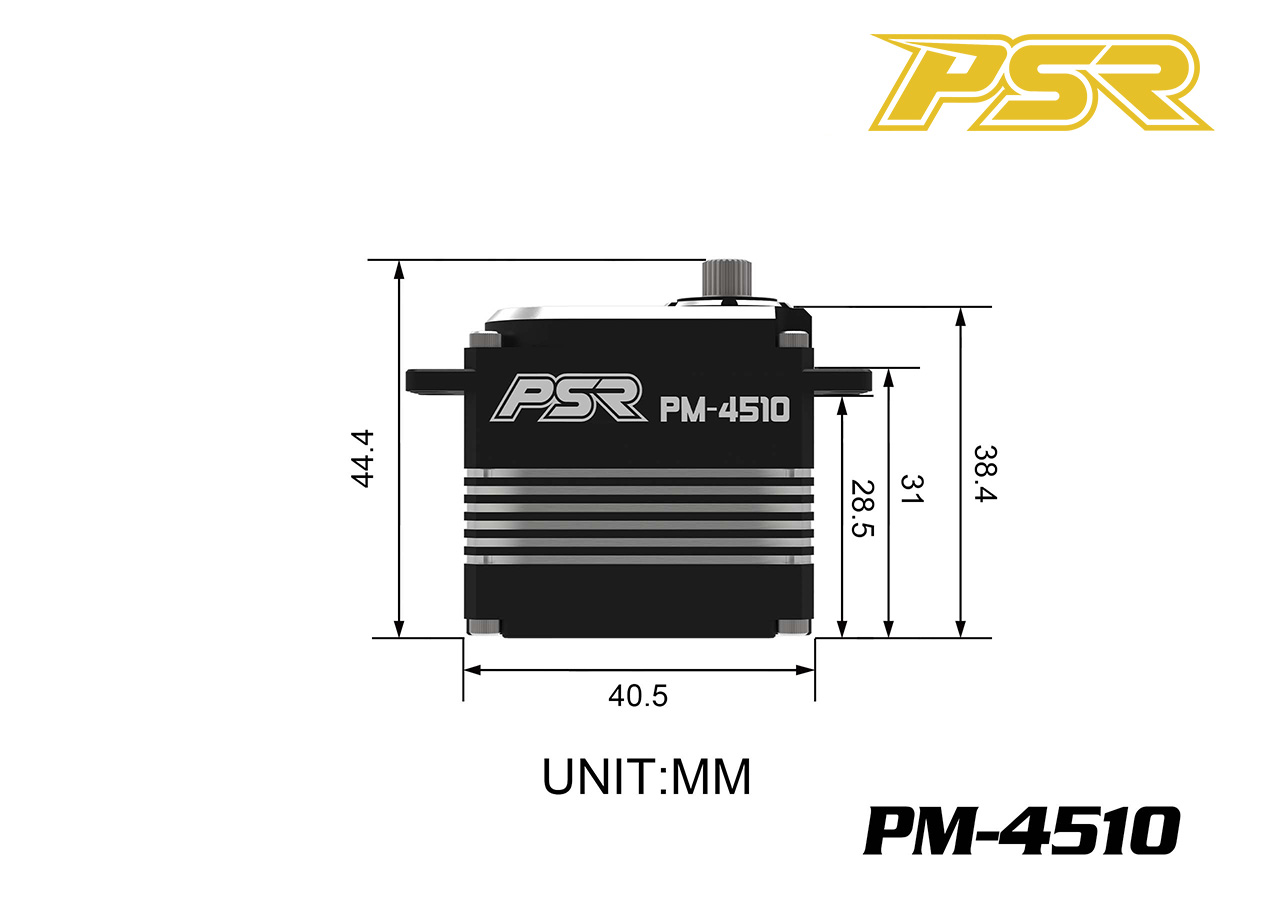

Size：39 x 21 x 40.5 mm
Wire Length:220mm
Wire Gauge: 22 AWG
Signal:Grey

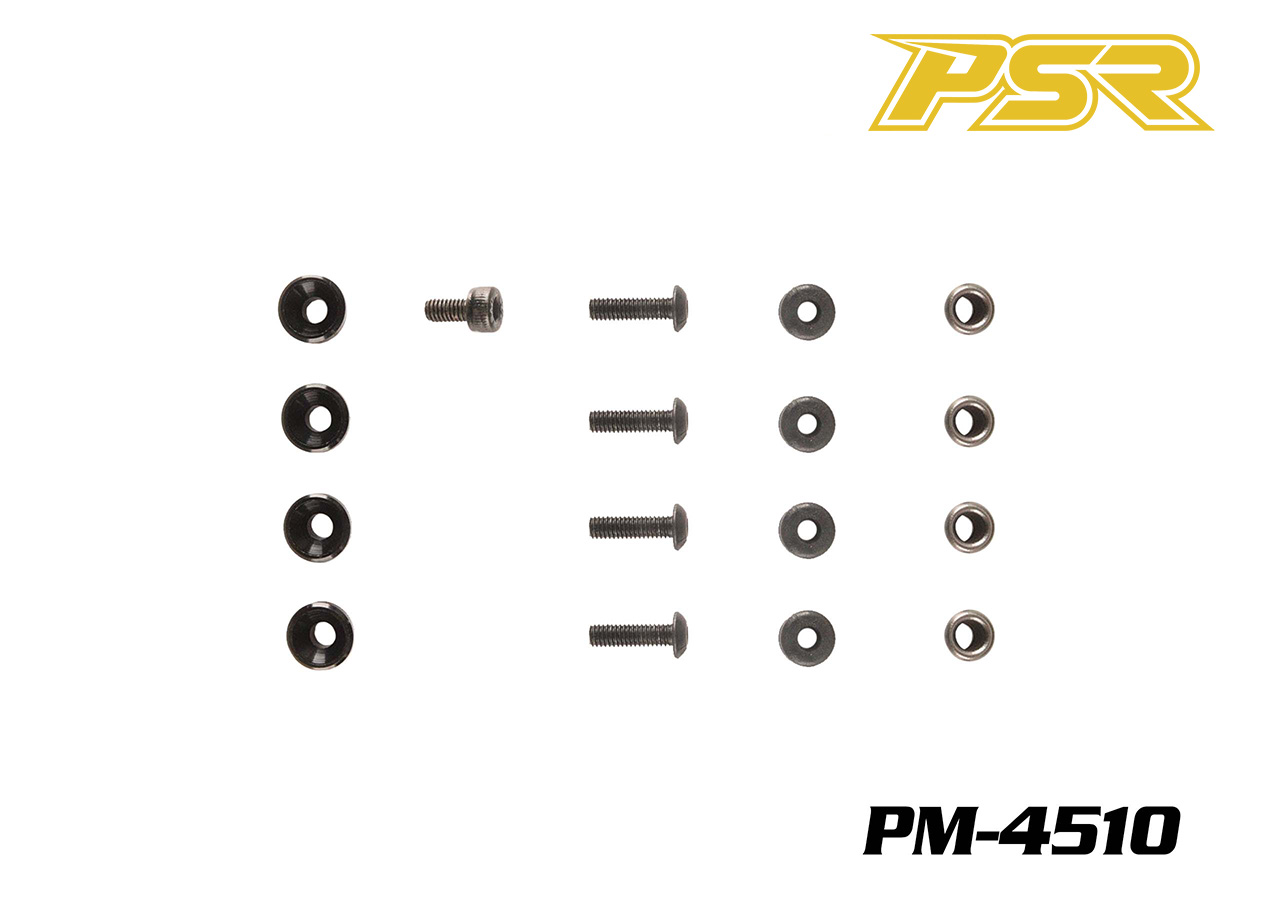

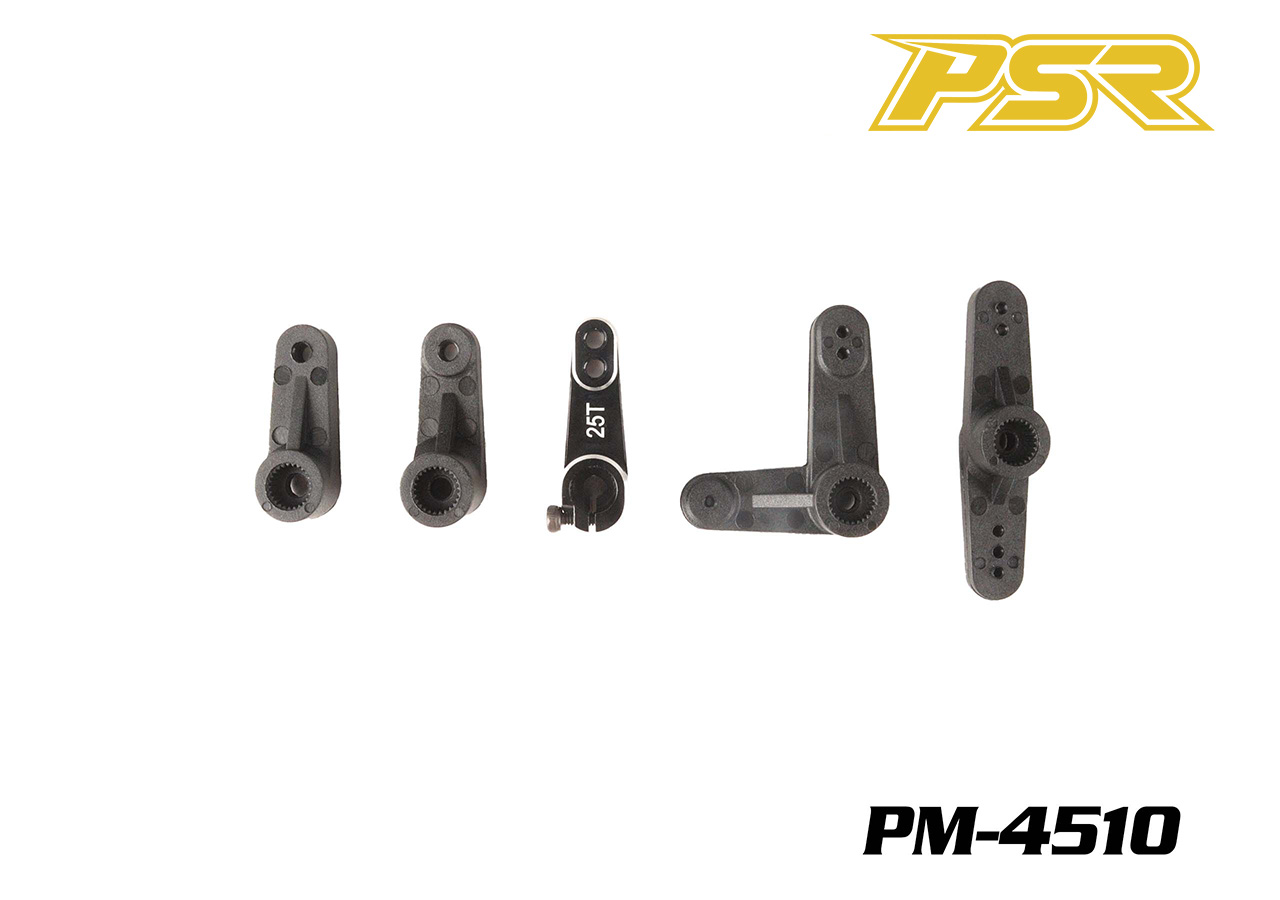

Package: 1 set Box-packed
